KFI ATV PLOW MOUNT 106020

Specifications:

• 100% MADE IN USA

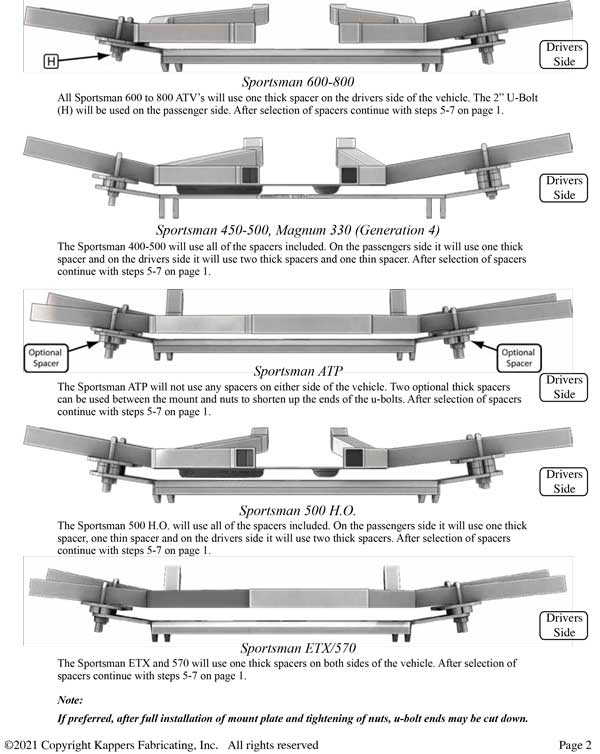

• Designed for the #105000 ATV push tube with pin up widths of 14.50″ (Center on Center) using 3/8″ Pin (see image example)
• Constructed of 3/16″ and 1/4″ Grade 50 steel
• Unlike all other competitors mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Very easy to install.

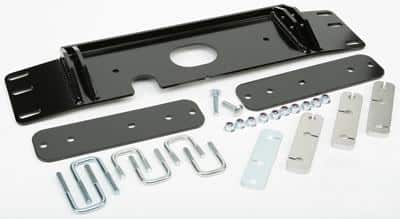

• All mounting hardware included.

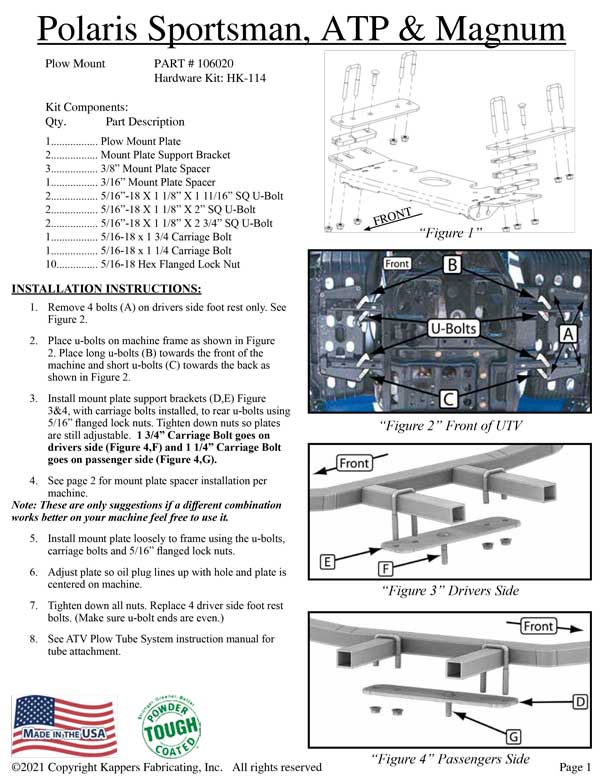

• Complete installation instructions included.
• Satisfaction guaranteed.

Fits Models:

ATP 330‘04-05

ATP 500‘04-05

Magnum 325 (All)‘00-02

Magnum 330 (All)’03-06

Magnum 500(All)’99-02

Sportsman 335’00 & Older

Sportsman 400’01-05

Sportsman 400’11-14

Sportsman 450’06-07

Sportsman 450’16-26

Sportsman 500’96-13

Sportsman 570 (Base*EPS*Premium*Trail)’14-26

Sportsman 570 SP’15-18

Sportsman Touring 570  (Base*EPS*Premium)’14-26

Sportsman Touring 570 Utility’20-25

Sportsman 600’03-05

Sportsman 700’02-08

Sportsman 800’05-14

Sportsman ETX (Hawkeye)2015

Sportsman Big Boss 6×6’17-26

NOTES:
B = Reguires Some Drilling
