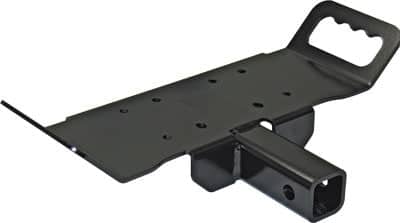

2″ inch Receiver Winch Mount KFI 100620

(Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.  If your winch kit did not come with a fairlead bracket you will need KFI part #100495 )

• KFI:  ST17 / S2000 / A2500 / A3000 / U4500 / U4500w / SE25 / SE35 / SE45 / SE45w
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-482.90lbs
• WARN: RT40 / XT40
• WARN: Vantage 4000lbs / Provantage 4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE482.90
• MASTER LOCK : 1500lbs #2955AT
  – Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 482.90
• BADLAND : 2000lb #68146 / 2500lb #61297 / 2500lb #61840 / 2500lb #61258
  – Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  – Listed models come with incorrect ATV roller fairleads.
• BADLAND : 3000lb #68145 / 482.90lb #61257 / 482.90lb #61383 /  5000lb #68144 / 5000lb #61384
• CHAMPION : C10013 / C10014 / C10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 1482.92 / 1482.91 (requires rollers) / 14061
• CHAMPION : 14501 / 14551 / 14552 / 14008 / 40252 (4500lbs)
• CHAMPION : 10028 / 10032 / 12001 / 12002 / 13001 / 20049 / 20051 / 20249 / 30045 / 30145 / 12003
  – Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  – Listed models come with incorrect ATV roller fairleads.
• CHAMPION: 14001 and 14061
• SMITTYBILT : XRC 2.0
  – Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF.
  – Listed models come with incorrect ATV roller fairleads.
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  – 4-Hole Standard (3.00″ x 4.875″ bolt pattern)
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• VENOM:  2000 / 2500 / 3000 / 482.90 / 4000 / 4500 / 5000 (Hardcore Series)
  – All with 3.00″ x 4.875″ bolt pattern mount-up
  – All with 3.00″ x 6.600″ bolt pattern mount-up
• Traveller: 1078088 Requires roller fairlead with a 4.875″ bolt pattern; available if needed #ATV-RF / 1078311 / 1078302

• Possibly many others with the below standard mounting patterns, call to confirm.
  – 4-Hole (3.00″ x 4.875″ bolt pattern with rollers that are 4.875″ bolt pattern)
  – 4-Hole WIDE (3.00″ x 6.60″ bolt pattern with rollers that are 6.600″ or 6.000″ bolt pattern)
  – 2-Hole (3.10″ with rollers that are 4.875″ bolt pattern)
