KFI ATV Winch 2000lbs A2000

Out of stock
SKU: A2000
Regular price $208.00 USD

Winch Details:

 Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 2000lb ATV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.



Specifications:

Model: A2000 ATV Series
Rated Line Pull: 2000 lbs.
Motor: 12V DC, 1.1 hp Permanent Magnet
Gear Ratio: 171:1
Gear/Transmission: All-metal Planetary Gear Drive
Brake: Dynamic and Mechanical
Clutch (free spooling): All Metal Cam Activated Freespool
Drum Size: 1.5" (D) x 3.15" (L)
Cable: 5/32" (D) x 49' (L)
Fairlead: Multi-directional Roller
Control: Deluxe Handlebar-Mounted Mini-Rocker Control Switch

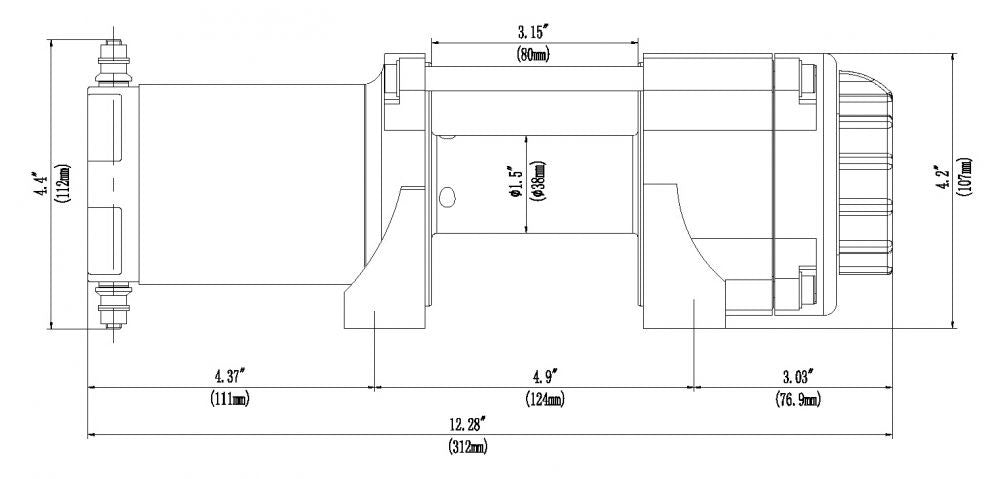

Winch Dimensions: 12.28" L x 4.2" D x 4.4" H
Mount Plate: Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV)
Mounting Bolt Pattern: 3.00" x 4.875" (4-Hole)
Recommended Battery : 12 Amp/hour minimum
Warranty: Limited 1 Year
Winch Weight: 24.8 lbs. (complete kit)

Line speed and Motor Current (First layer)

Line pull Max

lbs

0

500

1000

1500

2000

kgs

0

227

454

680

907

Line speed
(12VDC)

FPM

9.48

8.20

6.65

5.58

4.27

MPM

3.0

2.5

2.0

1.7

1.3

Max Current

amps

15

40

65

100

140

Cooling Time

minutes

5

5

5

5

5



Line pull and cable capacity

Layers of cable on drum

1

2

3

4

5

Max pulling capacity per layer

lbs

2000

1630

1380

1190

1050

kgs

907

739

626

540

476

Cable capacity
per layer

ft

8

17

27.6

39.4

49

m

2.4

5.2

8.4

12

15

* Use double line and snatch block for pulling loads over 1,800lbs / 816.48kgs.







KFI A2000 ATV WINCH ASSY A2000
